POSITION:  HOME - Products - Raceway - Raceway On-A-Roll - FWF-25511
Product Code: FWF-25511

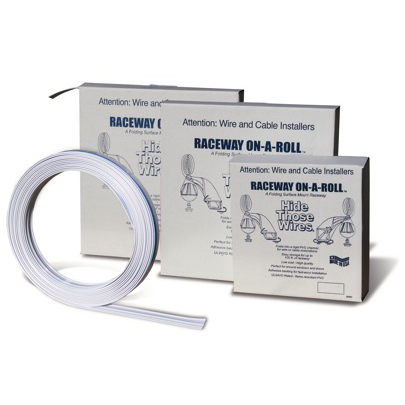

Item Name: Raceway On-A-Roll
Description:

Raceway-On-A-Roll

Raceway on-a-roll was designed with the installer in mind. It's blend of easy storage, value and quality is just what a professional deserves.

It's low profile and paintable surface allows this surface mount raceway to be used on installations where minimum presence is required. Just rollout the length you need, cut with ordinary scissors, and fold into a rigid channel shape. Then remove the tape backing and apply to clean dry surface. Load wires or cable and snap shut.

2 sizes. Knowing that up to 100 feet of raceway packed in a box the size of a pizza box is always on hand is comforting also.



Features:

• Folds into a rigid PVC channel for wire or cable installations
• Easy storage for up to100 ft. of raceway
• Low cost - High quality
• Perfect for around windows and doors
• Adhesive backing for fast-easy installation
• UL94VO Rated - flame retardant PVC
• Latex Paintable

Low profile and paintable surface allow this surface mount raceway to be used on installations where minimum presence is required. Just rollout the length you need, cut with ordinary scissors, and fold into a rigid channel shape. Then remove the tape backing and apply to clean dry surface. Load wires or cable and snap shut. 4 sizes. Knowing that up to 100 feet of raceway packed in a box the size
of a pizza box is always on hand is comforting also.

PRODUCT WHITE BEIGE

1/4 in.
1 - 50 ft. roll FWF-25511 FWF-25521
6 - 50 ft. rolls per case FWF-25516 FWF-25526
1 - 100 ft. roll FWF-25111 FWF 25121
6 - 100 ft. roll FWF-25116 FWF 25126

3/8 in.
1 - 50 ft. roll FWF-14511 FWF-14521
6 - 50 ft. rolls per case FWF-14516 FWF-14526
1 - 100 ft. roll FWF-14111 FWF-14121
6 - 100 ft. roll FWF-14116 FWF-14126

1/2 in.
1 - 50 ft. roll FWF-05511 FWF-05521
1 - 100 ft. roll FWF-05111 FWF-05121

*1 in.
1 - 50 ft. roll FWF-10511 FWF-10521
*Patent Pending

Inside Dimensions
SIZE WIDTH HEIGHT
1/4 in. 0.255" 0.125"
3/8 in. 0.375" 0.375"
1/2 in. 0.475" 0.475"
1 in. 1.085" 0.545"
