| Product Code: VB-SEC4103 |
| Description:
Highlights:
-
- Transmit a color video signal up to 300-400m/1000ft, and a full motion monochrome (B&W) video signal up to 600m/1800ft via - Unshielded Twisted Paire (UTP) wires
-
- NTSC, PAL & SECAM video format compatible
-
- Real-time transmission
-
- Exceptional interference rejection
-
- Built-in TVS (Transient Voltage Suppressors) for surge protection
-
- Lightning protection design Grade: III
-
- RJ-45 and detachable terminal blocks for Unshielded Twisted Paired (UTP)
-
- Support for "up-the-coax" type signals
-
- No power required
-
- 50 dB cross-talk and noise immunity
-
- Metal outer housing
-
- Compact size and easy installation
Specifications:
|
Model
|
CMT-4103SR
|
|
Product Name
|

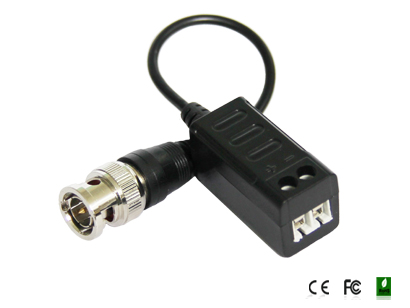

Single Channel Passive Video Transceiver
|
|
Applied Devices
|
CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment
|
|
Video
|
Video Format
|
PAL, NTSC, SECAM
|
|
Operating Frequency
|
DC to 5MHz
|
|
Max Distance
|
UTP Category 5e (24AWG)
Color: 1300ft(400m) B&W: 1950ft(600m)
|
|
Common-mode/Differential-mode rejection
|
15 KHz to 5 MHz 60 dB typ
|
|
Impedance
|
Coax, Male BNC 75 ohms
|
|
UTP, Screw terminal 100 ohms
|
|
Attenuation
|
0.5 dB typ
|
|
Wire Type
|
Network Wiring
|
One Unshielded Twisted Pair (for each video signal)
24-16 AWG (0.5-1.31mm)
|
|
Category Type
|
2 or better
|
|
Impedance
|
100 ± 20 ohms
|
|
DC Loop Resistance
|
52 ohms per 1,000ft (18 ohms per 100m)
|
|
Differential Capacitance
|
19 pF/ft max (62 pF/m max)
|
|
Power
|
No external power required
|
|
Connector
|
Video input/output
|
Male BNC connector
|
|
Video input/output
|
Screw terminal
|
|
Protection
|
Surge Protection
|
Built-in Transient Voltage Suppressor(TVS)
|
|
Antistatic
|
YES
|
|
Mechanical
|
Dimensions(L*W*H)
|
207.5*17.7*17.2mm
|
|
Housing
|
ABS fire retardant plastic
|
|
Body Color
|
Black
|
|
Net Weight
|
22g
|
| |
|
